- Size: 3CBM
- Place of Origin: HEFEI
- Brand Name: MIMA
- Model Number: TB15-30
- Weight: 950.000 kg

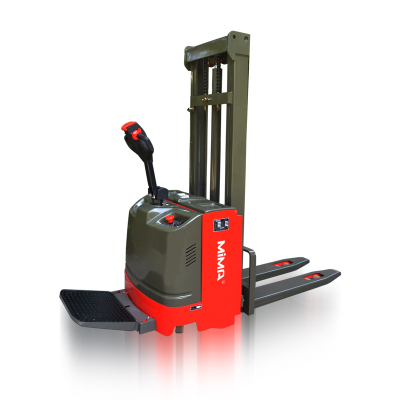

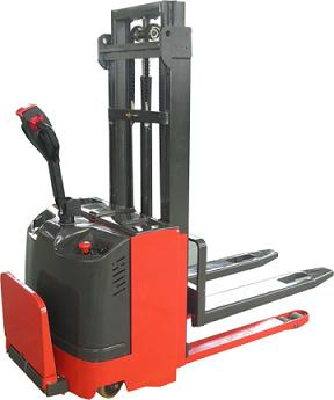

Electric Pallet Stacker
Model TB
Extraordinary maneuverability in narrow
Controller: Curtis(USA). Vertical driving motor
Loading capacity: 1.0 / 1.5/ 2.0ton
Lifting height: 1600mm –4500mm
Option:1.Arm rest: 2.Free lifting mast 3.Straddle legs 4.Imported battery
AC Power System
Residual capacity
Mast | Lifting height | Loading @ MAX. height | ||
TB10 | TB15 | TB20 | ||
mm | kg | kg | kg | |
Duplex | 3000 | 1000 | 1500 | 2000 |
3500 | 800 | 1200 | 1500 | |
4000 | 600 | 900 | 1200 | |
Triplex | 4500 | 500 | 600 | 800 |
